1 / 5
| Code | SH-600 | SH-800 | SH-1100 | SH-1400 |
| Coil outer diameter | 150-750mm | 150-850mm | 200-1000mm | 200-1000mm |
| Foil width | 100-600mm | 150-800mm | 200-1100mm | 300-1400mm |
| Foil layers | Single or double | |||
| Foil thickness | Cu:0.3-2.5mm Al: 0.5-3.0mm | |||
| Winding speed | 0-30r/min | 0-30r/min | 0-20r/min | 0-20r/min |
| Max tension of foil | 6000N | 8000N | 10000N | 14000N |
| Welding speed | 0-0.5 m/min | |||
| Correction precision | ±0.5mm | |||
| Welding method | TIG or cold pressure welding | |||

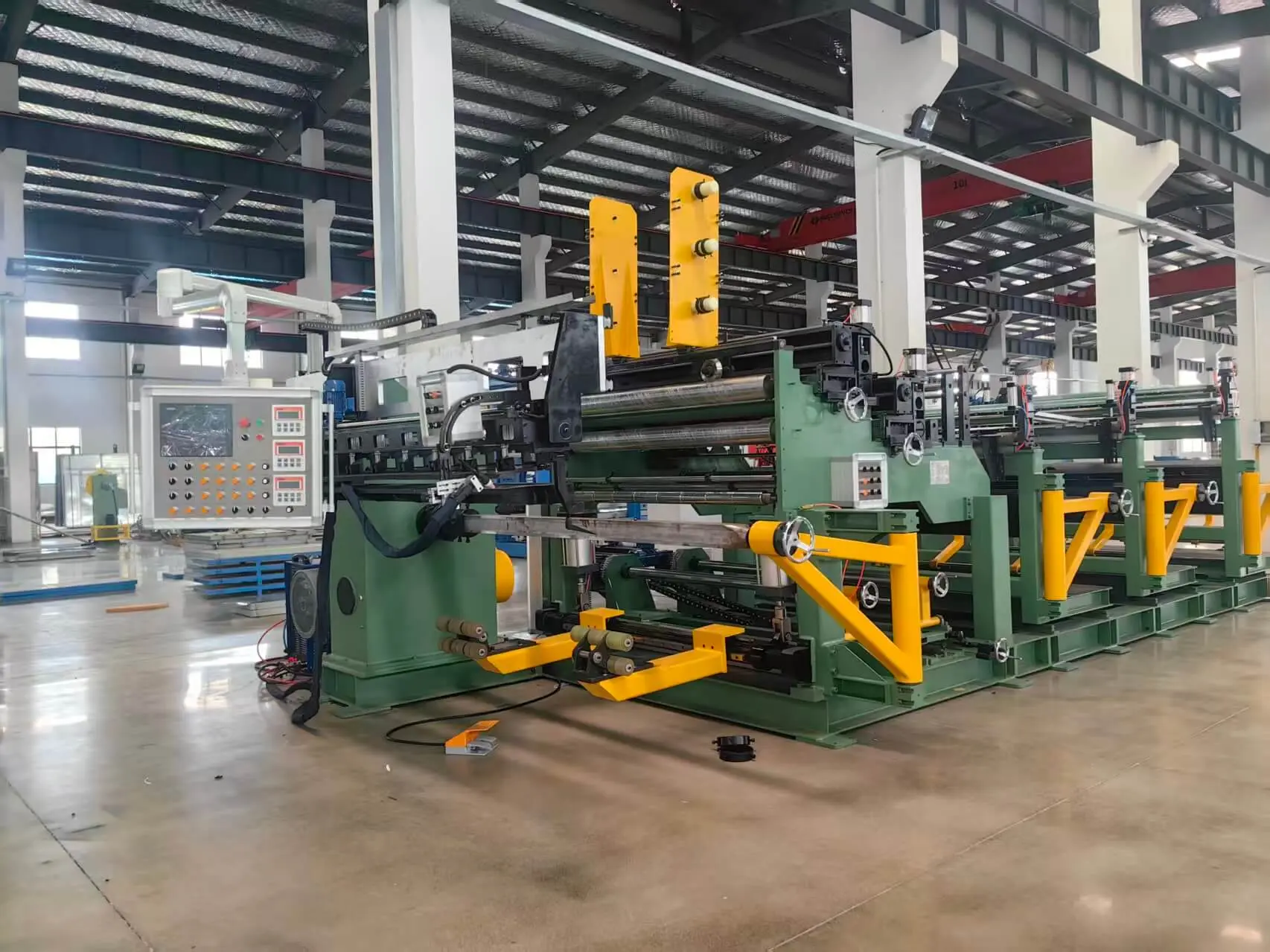

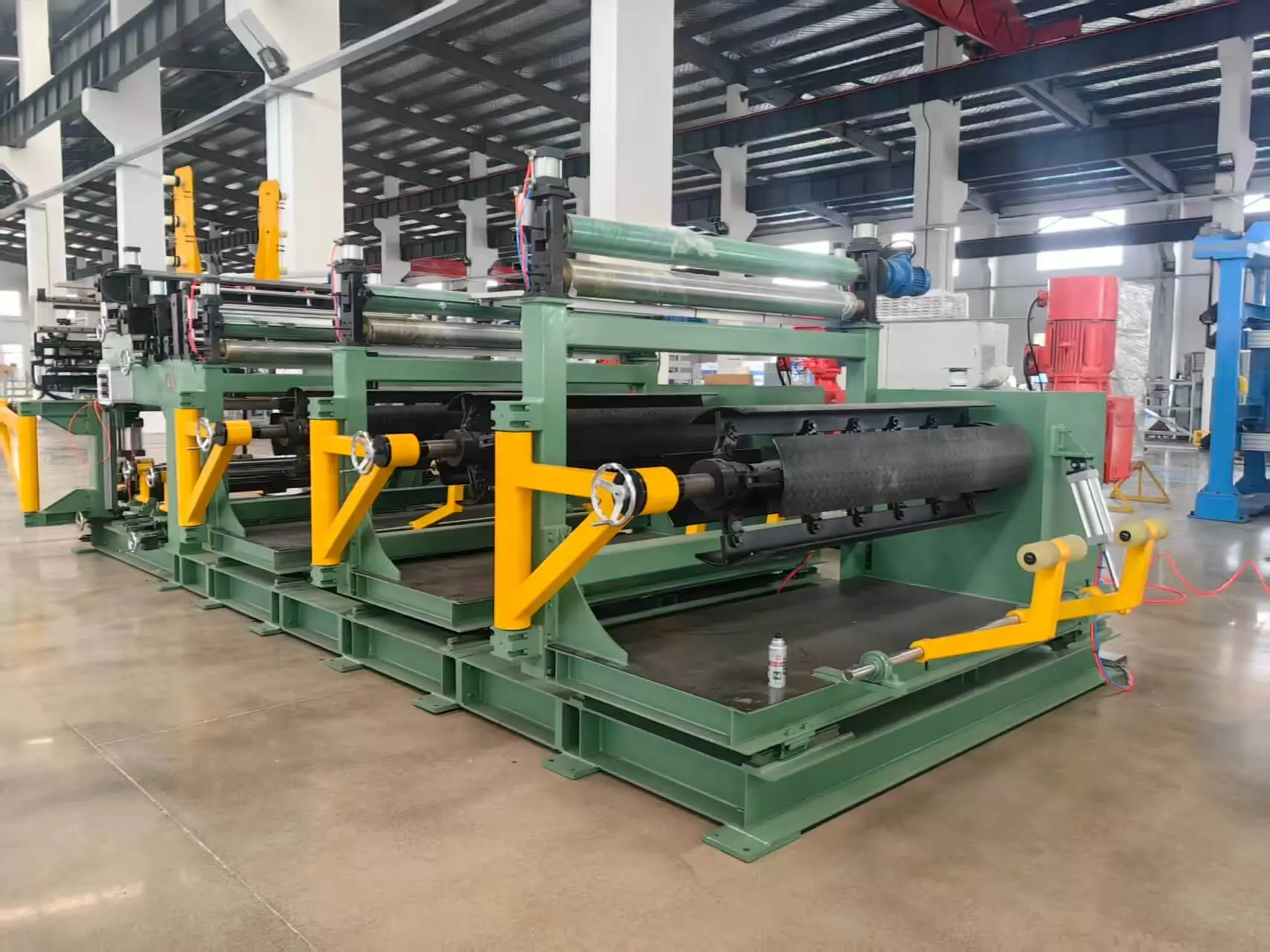

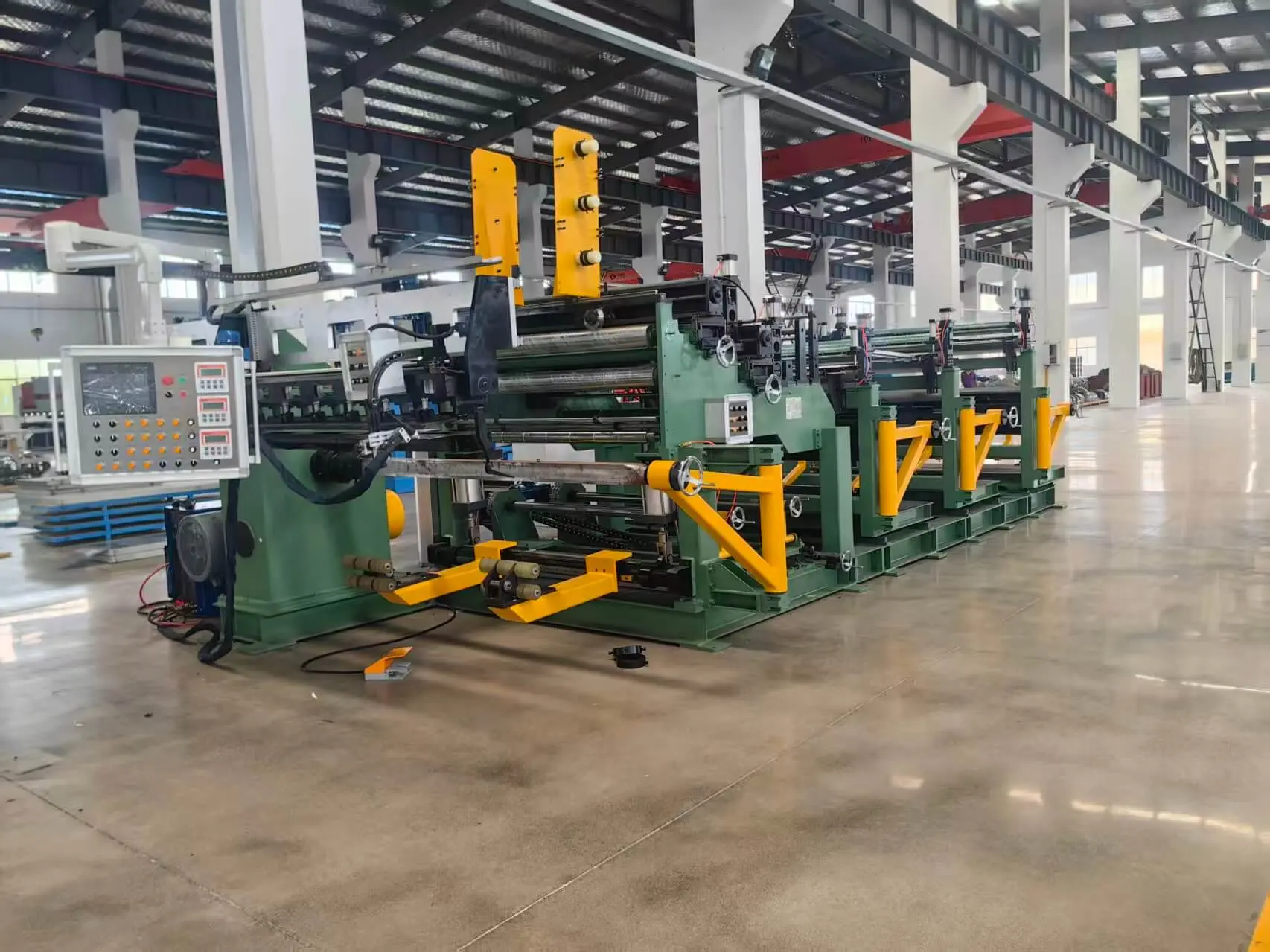

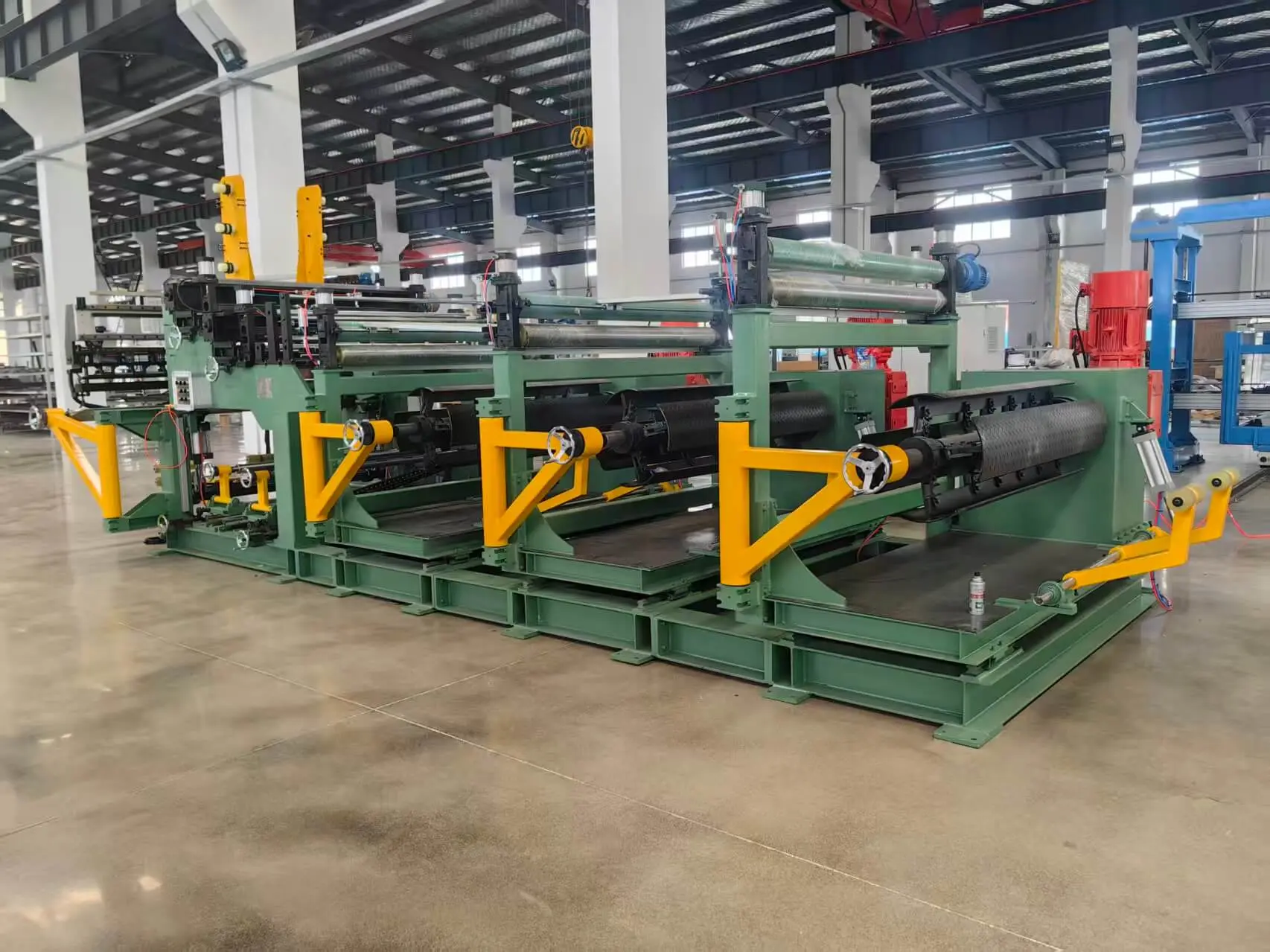

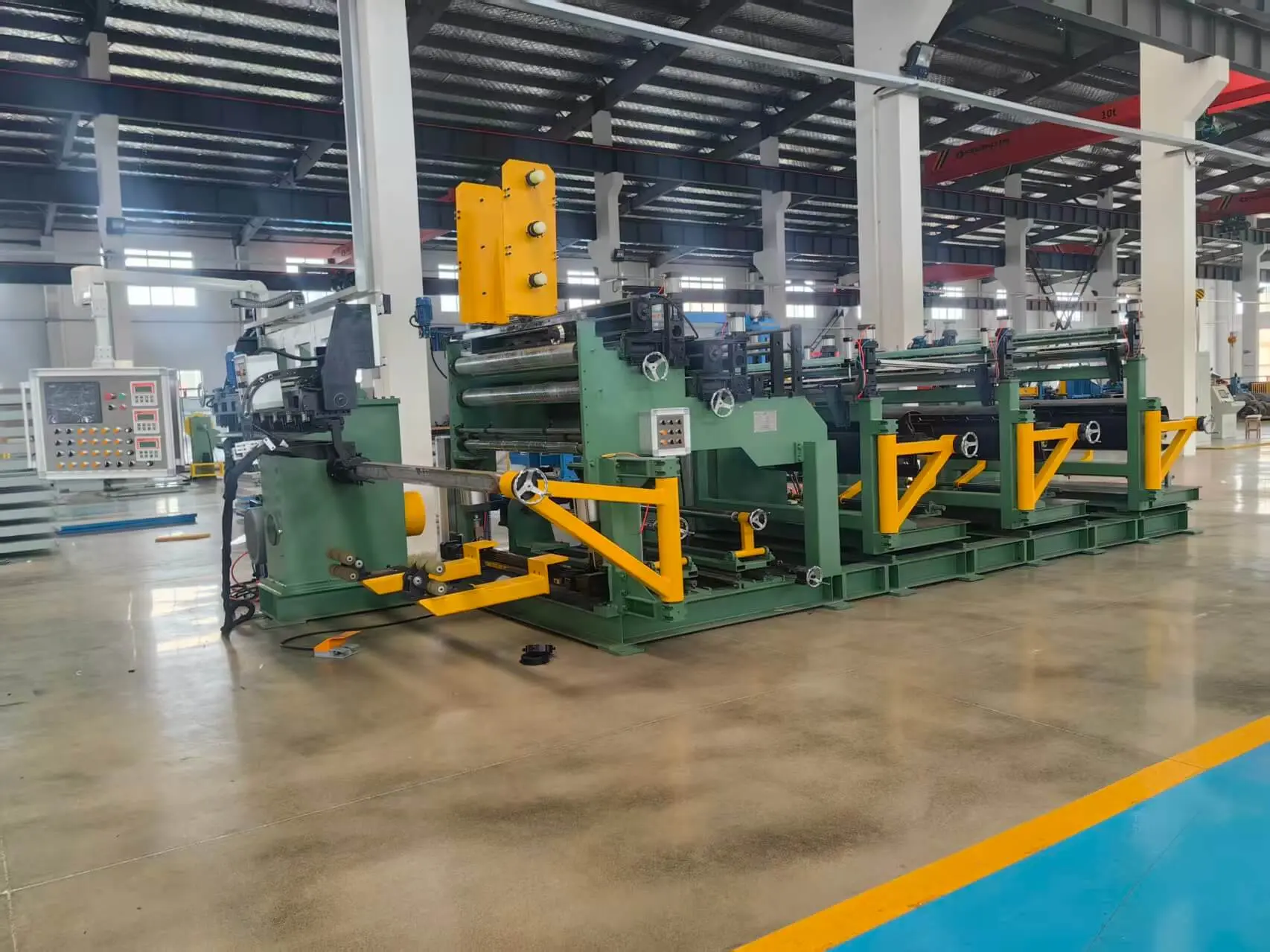

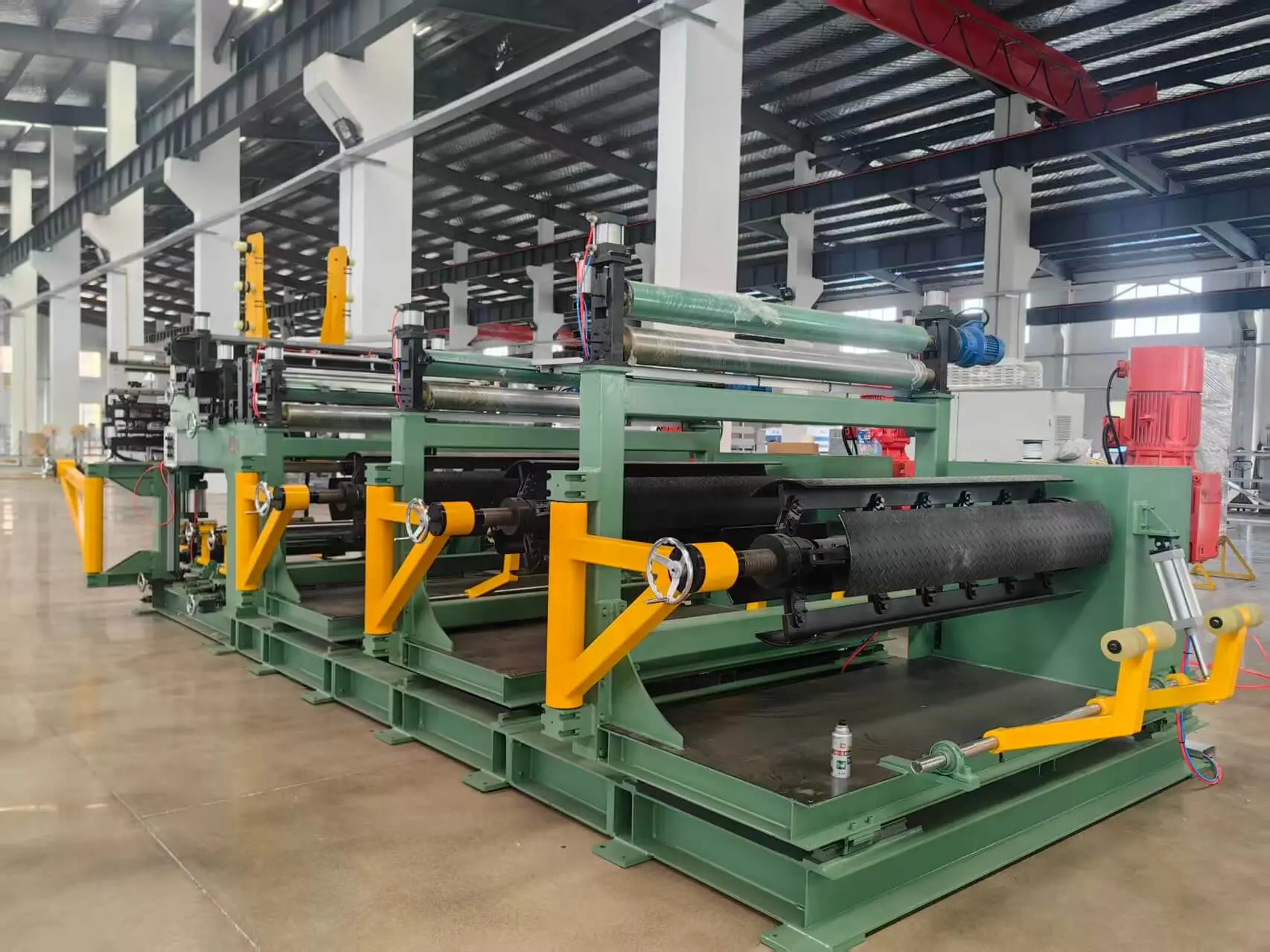

Enables simultaneous three-layer coil winding, drastically reducing production steps for complex coils.

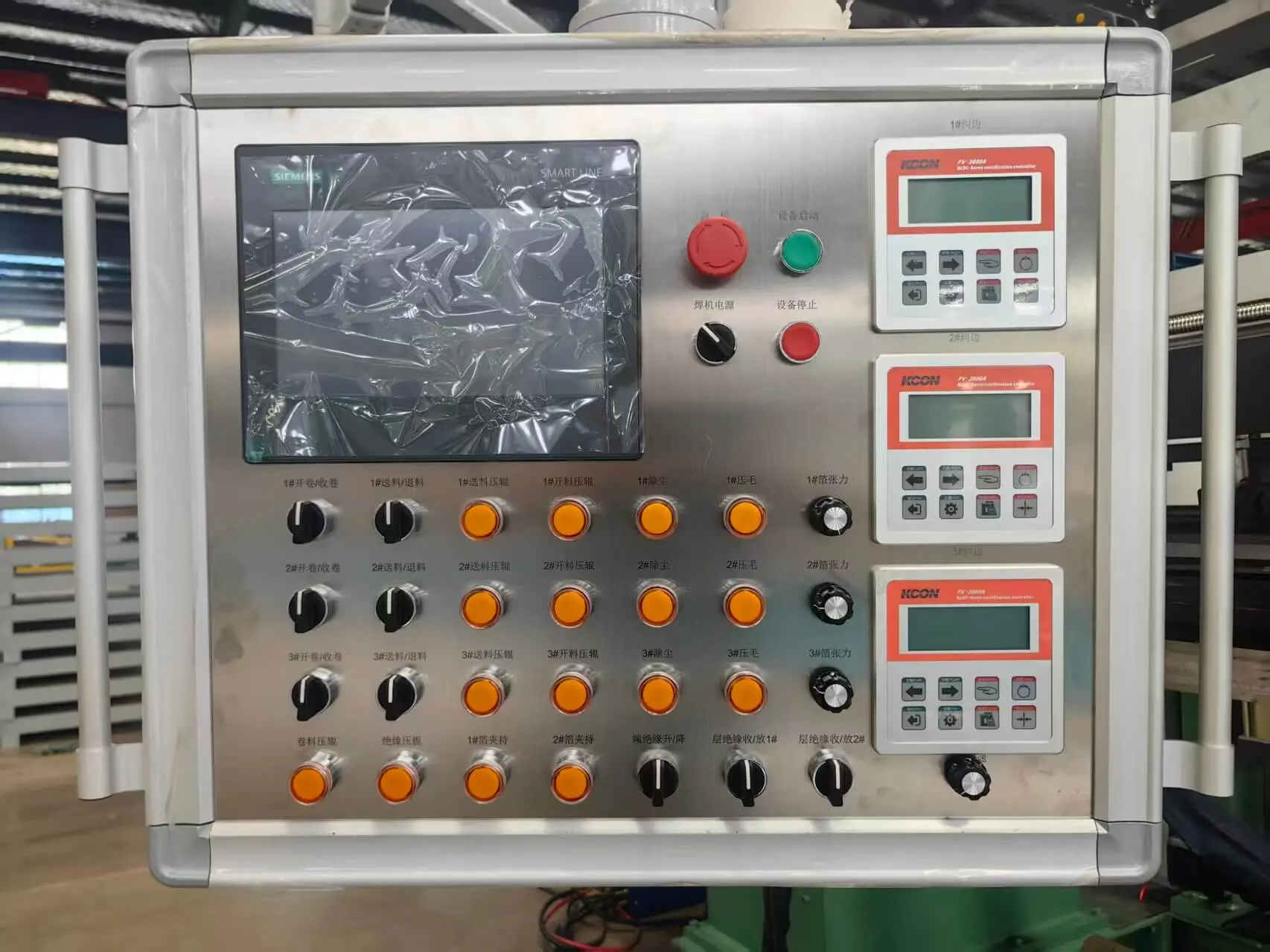

Independent tension adjustment for three foil paths, ensuring uniform layer distribution and high dimensional accuracy.
Automates feeding and winding, cutting manual work by 40%+ compared to single/double-layer models, speeding up cycles.
Compatible with multi-type foils (copper, aluminum) and handles high-power coil needs (1000kVA+ equipment).
Reinforced structure and intelligent control system, ensuring stable performance under long-term high-load work.
Ideal for winding multi-layer composite coils, meeting technical demands of high-voltage/high-precision equipment.
Core equipment for winding three-layer foil coils in 110kV+ medium/high-voltage power transformers, enhancing insulation performance and coil stability.
Applied to wind three-layer foil coils for ultra-high-power shunt reactors and SVG reactors, adapting to high-current, high-voltage working conditions.
Suitable for coil manufacturing in 5MW+ new energy grid-connected inverters, energy storage converters and high-voltage rectifiers.
Used in coil production for industrial ultra-high power frequency converters, large-scale electric furnace power supplies and smelting equipment.
Applied to winding coils for high-voltage test transformers, GIS (Gas Insulated Switchgear) supporting transformers and special power supplies.
The machine handles multiple types of foil materials, supporting copper foil thicknesses from 0.3mm to 2.5mm and aluminum foil thicknesses from 0.5mm to 3.0mm.

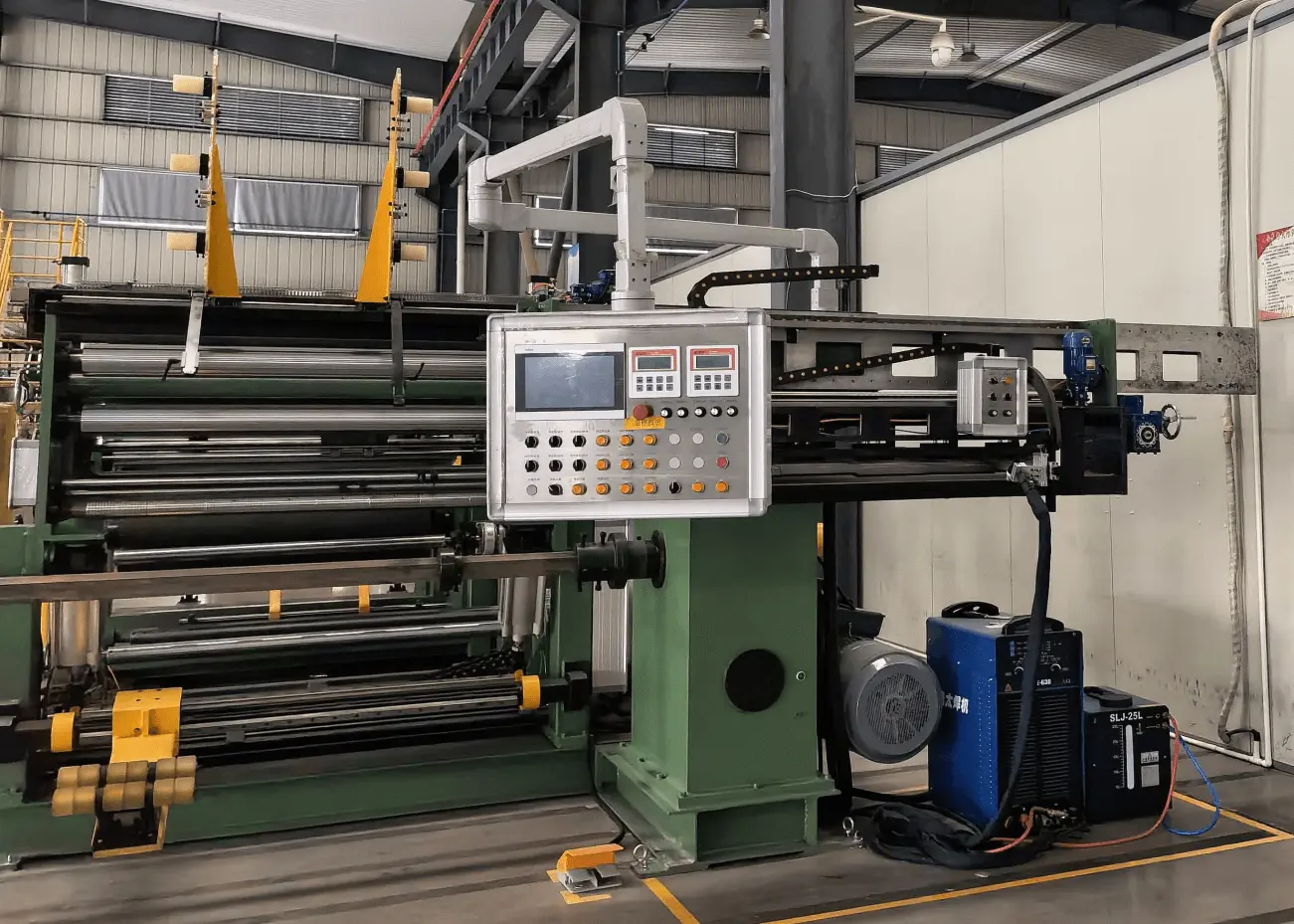

These machines support both TIG (Tungsten Inert Gas) welding and cold pressure welding methods, ensuring durable, high-precision connections during production.
The machine features independent tension adjustments for three separate foil paths. This ensures uniform layer distribution and high dimensional accuracy, minimizing winding errors.
They are ideal for manufacturing medium/high-voltage power transformers, high-power reactors, new energy storage converters, and industrial ultra-high power conversion equipment.
Yes. Engineered with a reinforced structural design and an intelligent control system, it provides stable performance even during long-term, high-load continuous work.
