| Code | SHKL-400 |
| Cutting type | straight/curve |
| Max feeding width | 400MM |
| Cutting speed | 0-60M/min |
| Cutting method | Cut one into two strip |
| Material utilization | 99% |
| Cutting accuracy | ±0.3MM |
| Cutting burr | ≤0.03MM |
| Speed adjusting way | Stepless speed adjust |

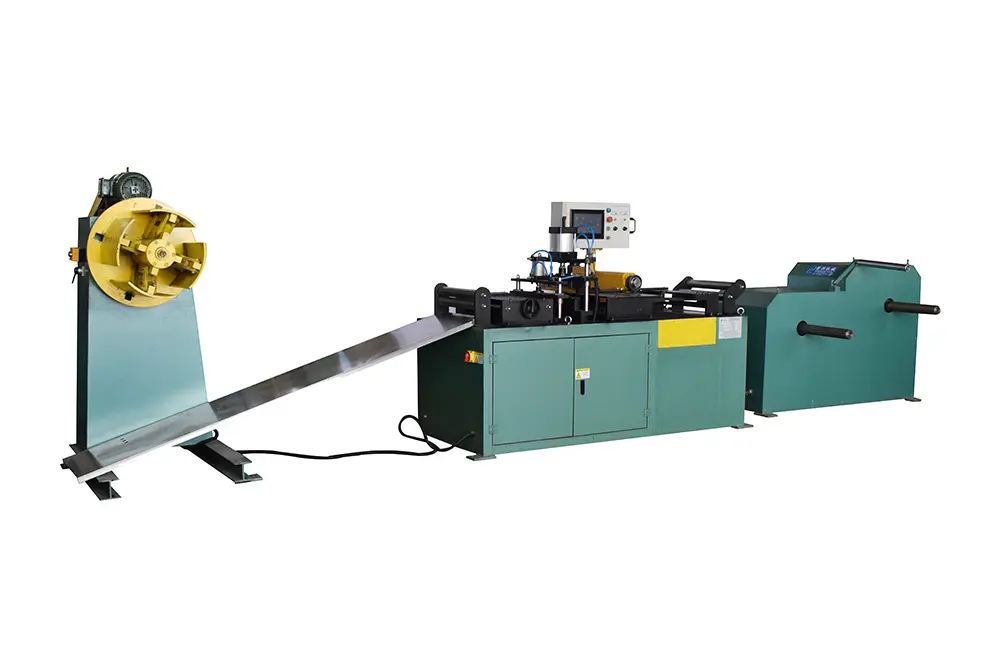

Leverages advanced CNC technology and high-precision servo systems to achieve cutting accuracy of up to ±0.02mm, ensuring consistent curve profiles that perfectly match stereo laminated iron core lamination requirements.
Integrates automatic material feeding, curve programming and waste collection. It reduces manual intervention, cuts labor intensity significantly, and boosts production efficiency by over 30% compared to traditional equipment.
Equipped with intelligent sensors for real-time silicon steel sheet thickness monitoring and automatic parameter adjustment, enabling smooth handling of different grades of silicon steel and complex curve cutting tasks.
Features a rigid frame structure that minimizes vibration during high-speed cutting, maintaining long-term cutting stability. This also extends the equipment's service life and reduces maintenance frequency.
Comes with an intuitive HMI for easy operation and real-time process monitoring. Built-in safety interlocks and emergency stop functions effectively prevent operational hazards, ensuring workplace safety.
Compatible with CAD/CAM systems, allowing direct import of design files. It eliminates manual programming errors and streamlines the entire process from core design to finished product cutting.
Precise cutting control minimizes material waste, lowering raw material costs for transformer core manufacturing while improving the overall quality of finished cores.
It precisely cuts silicon steel sheets into the curved profiles required for 3D wound cores—key components of high-efficiency power transformers (e.g., distribution transformers, power plant main transformers). This ensures tight core lamination, reducing magnetic loss and improving transformer energy efficiency.
Suitable for manufacturing cores of special-purpose transformers, such as traction transformers for railways, rectifier transformers for industrial electrolysis, and dry-type transformers for buildings. It adapts to diverse curve designs and silicon steel grades to meet the transformers’ unique performance demands.
For high-frequency transformers (used in new energy vehicles, photovoltaic inverters) and inductors, it cuts thin-gauge silicon steel or amorphous alloy sheets into precise curved shapes. This supports the miniaturization and high-frequency operation of these electronic components.
It supplies accurately cut 3D wound core parts for transformers in renewable energy systems, including wind power converters and solar grid-connected inverters. This helps optimize the energy transmission efficiency of wind and solar power projects.
