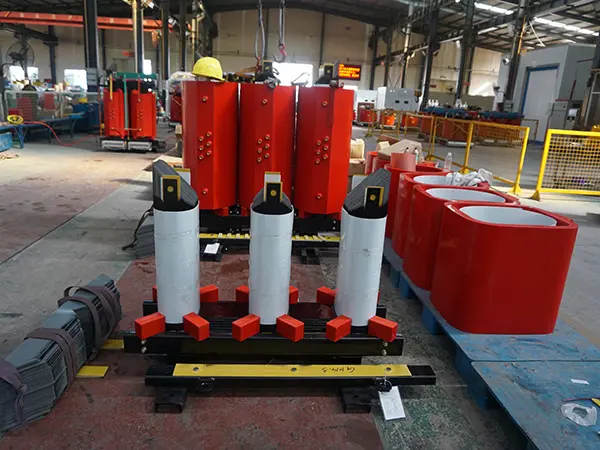

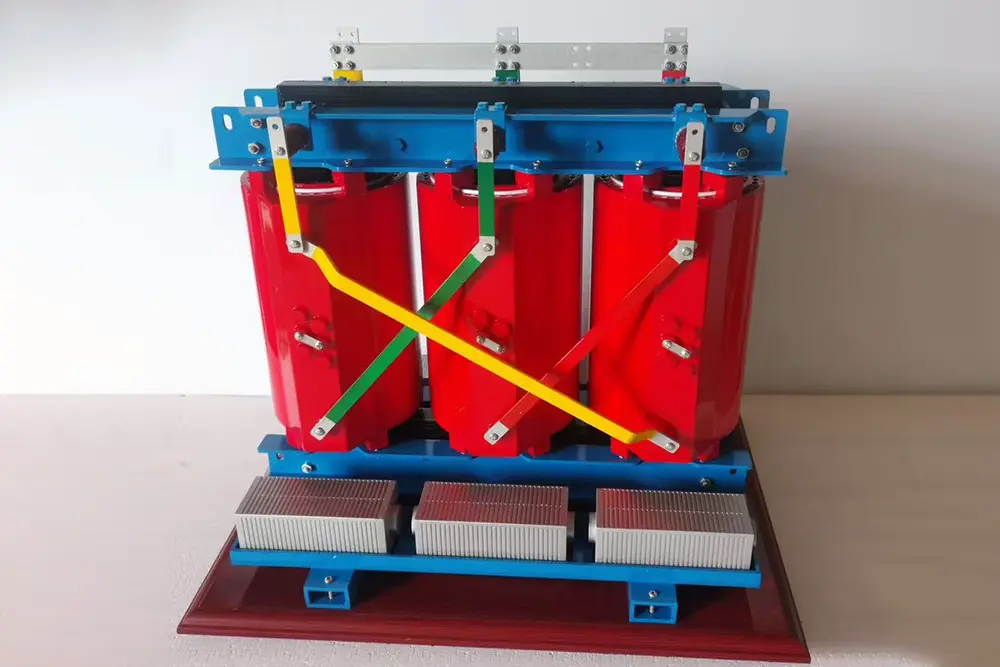

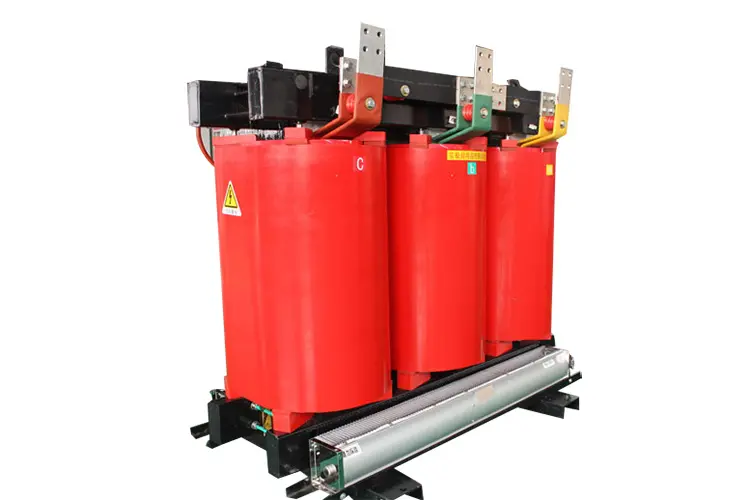

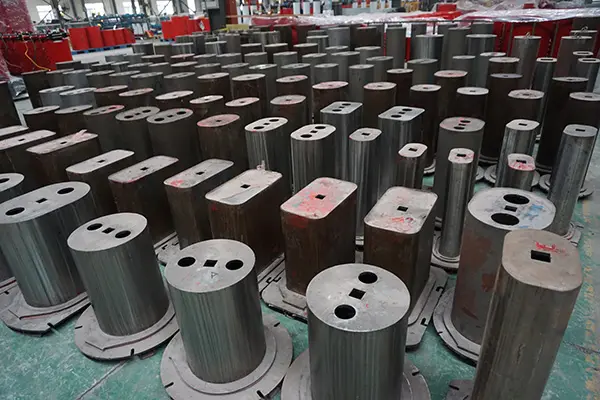

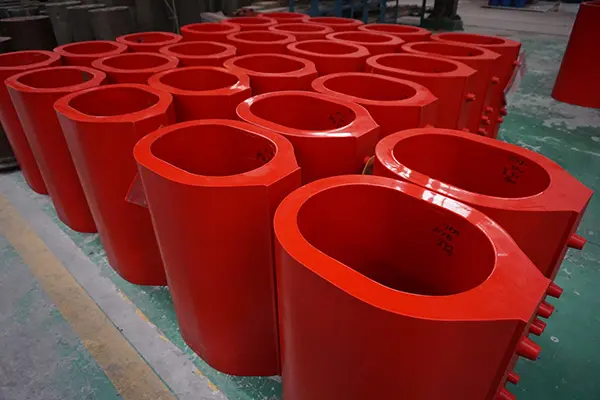

| Basic Specifications | |
| Rated Capacity | 50kVA - 2500kVA (customizable for larger capacity) |
| Rated Voltage | High voltage (HV): 6kV / 10kV / 35kV; Low voltage (LV): 0.4kV (380V/220V) |
| Frequency | 50Hz / 60Hz (dual-frequency optional) |
| Phase | Three-phase |
| Connection Group | Dyn11 (standard); Yyn0 / Dd0 (optional) |
| Electrical Performance | |
| No-Load Loss | ≤180W (50kVA) - ≤2200W (2500kVA) (meets IEC 60076-11 Class 1) |
| Load Loss (at 1.0 rated current, 75ºC) | ≤850W (50kVA) - ≤12500W (2500kVA) |
| No-Load Current | ≤2.5% (50kVA) - ≤1.0% (2500kVA) |
| Short-Circuit Impedance | 4% (50kVA-1000kVA); 6% (1250kVA-2500kVA) (tolerance: ±10%) |
| Insulation Resistance (25ºC) | HV-LV & Earth ≥300MΩ; LV-Earth ≥100MΩ |
| Temperature Rise & Heat Dissipation | |
| Temperature Rise Limit (rated load) | Winding (Class H insulation) ≤125K; Iron Core ≤80K |
| Cooling Method | AN (Air Natural) / AF (Air Forced, optional for ≥1000kVA) |
| Overload Capacity | 120% rated load for 2 hours (temperature rise ≤140K); 150% rated load for 30 minutes |
| Insulation & Protection | |
| Insulation Class | H (temperature resistance up to 180ºC) |
| Withstand Voltage (1min, 50Hz) | HV side: 35kV (for 10kV rated voltage); LV side: 6kV |
| Protection Level | IP20 (standard); IP21 / IP30 (customizable for outdoor/dusty environments) |
| Structure & Environment | |
| Noise Level | ≤55dB (at 1m distance, 50kVA) - ≤65dB (2500kVA) |
| Weight | ~380kg (50kVA) - ~3200kg (2500kVA) |
| Dimension (L×W×H) | 1200×800×1300mm (50kVA) - 2800×1600×2500mm (2500kVA) |
| Working Environment | Temperature -25ºC~+40ºC; Humidity ≤90% (non-condensing); Altitude ≤1000m (derating required above 1000m) |
Ideal for shopping malls, office towers, and hotels — its oil-free, flame-retardant design eliminates fire/leak risks in enclosed areas, powering HVAC systems, elevators, lighting, and commercial appliances while operating quietly to avoid disrupting public environments.
Critical for powering servers and network equipment, as its stable voltage output prevents data loss from fluctuations. Its dust-proof and high-temperature-resistant features suit the controlled, high-density electrical environments of data hubs.
Used in electronics, machinery, and food processing plants — where oil-based transformers pose contamination risks. It withstands industrial dust and moderate heat, supporting continuous operation of production lines with low maintenance needs.
Integrated with solar/wind energy storage systems to convert and distribute clean power. Also deployed in residential neighborhoods and urban medium-low voltage grids, ensuring safe, efficient electricity supply for households without environmental hazards.
