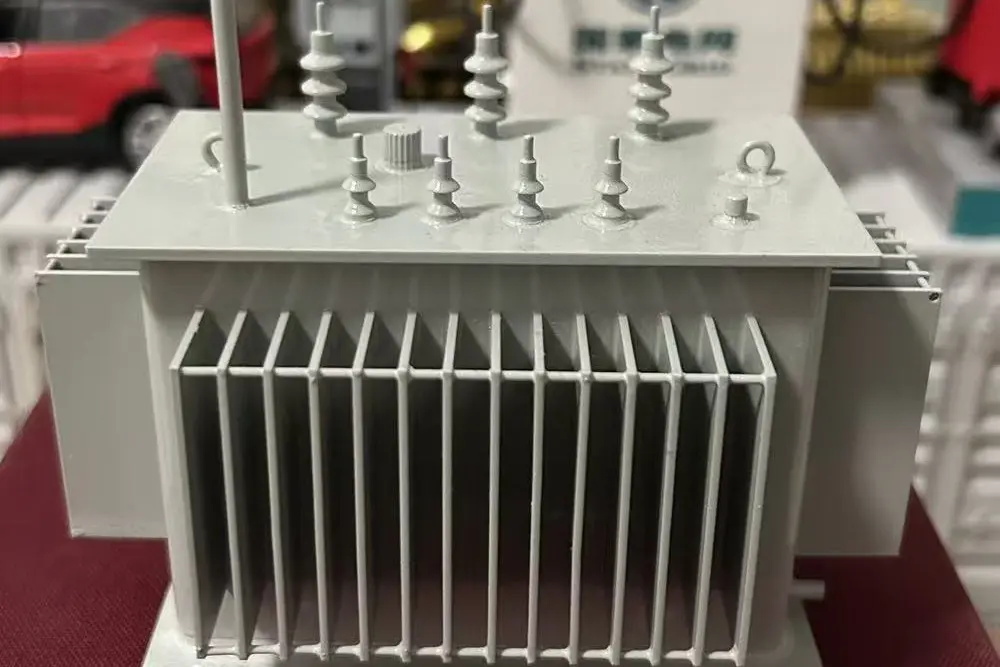

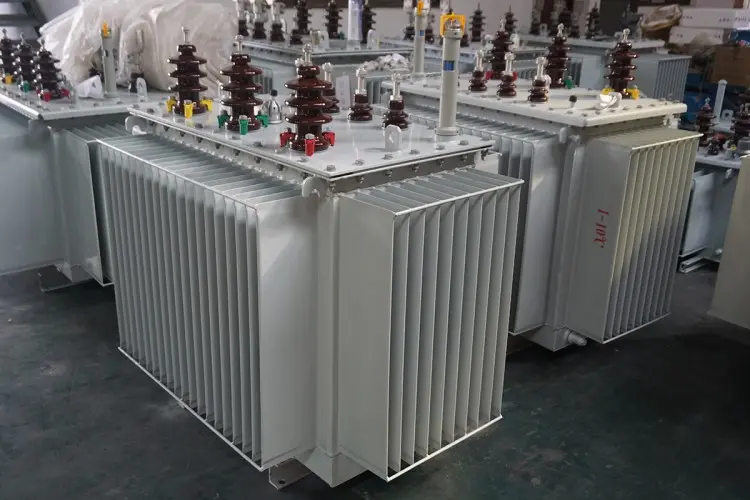

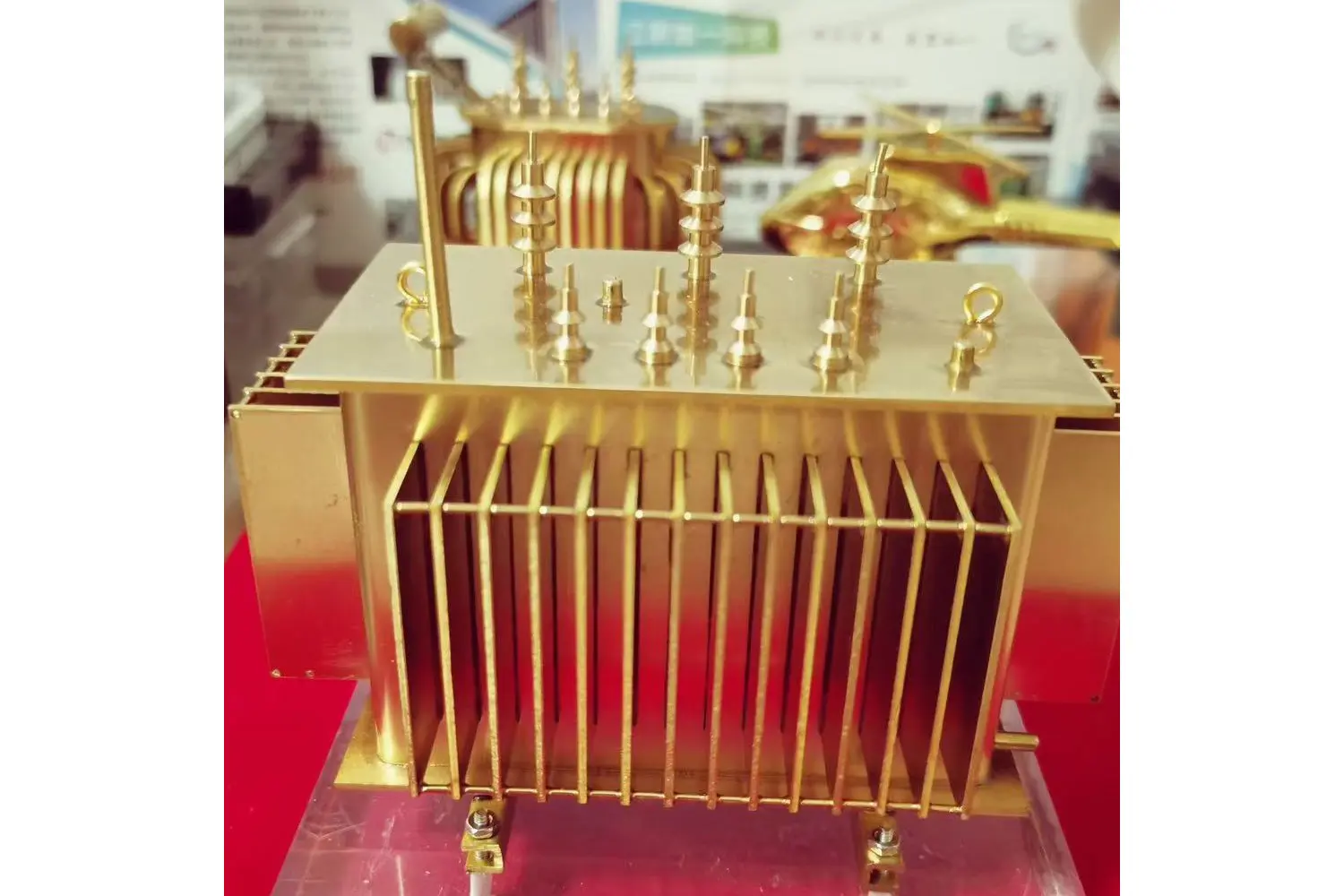

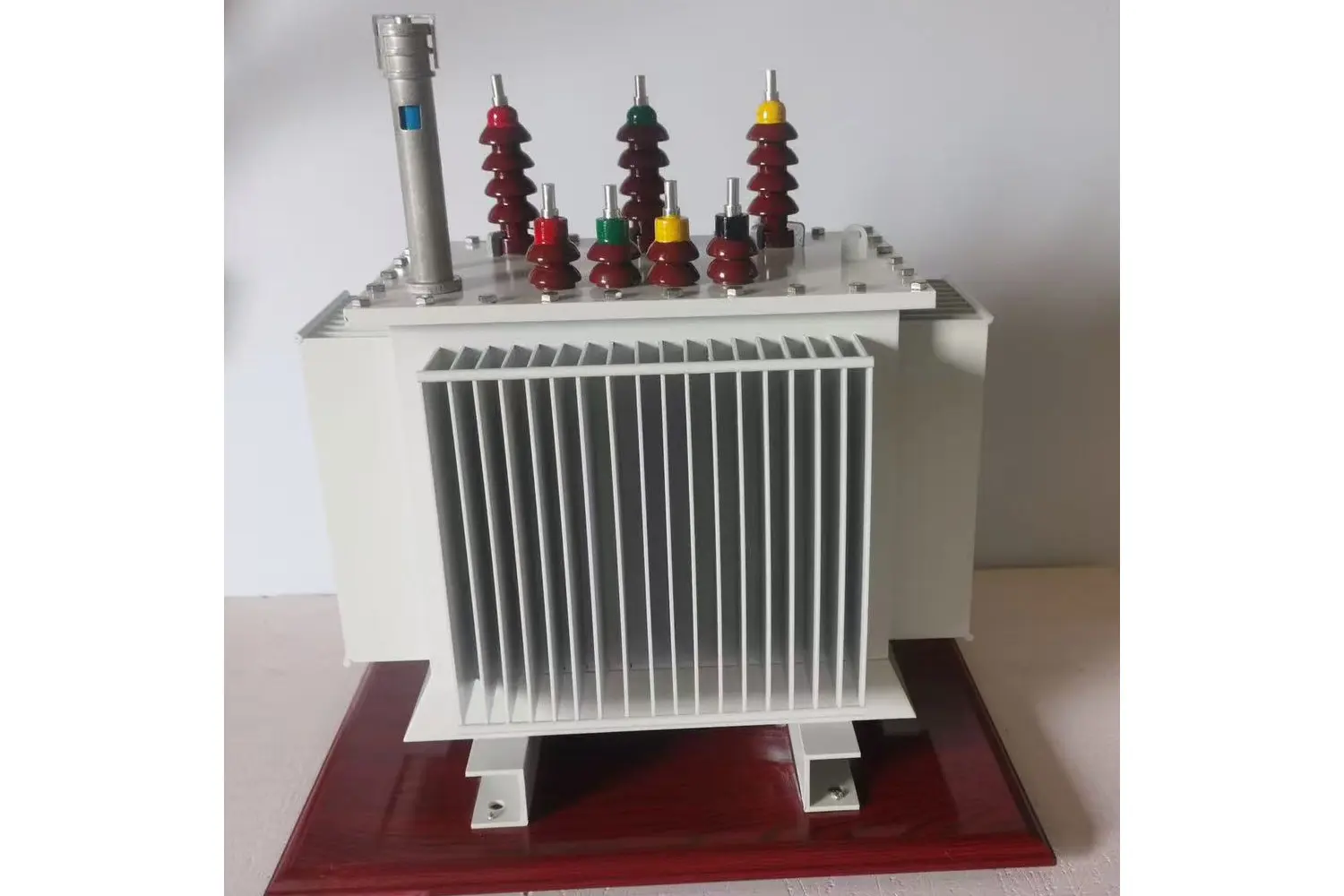

| Basic Information | ||
| Item | Specification | |
| Product Model | Example: S13-M-100/10 (S=Three-Phase, 13=Efficiency Class, M=Hermetically Sealed, 100=Rated Capacity kVA, 10=HV Rated Voltage kV) | |
| Rated Capacity（Sn） | 50kVA~2500kVA (ONAN: 100% rated capacity; ODAF: 130% rated capacity) | |
| Phase | Three-Phase (Standard) / Single-Phase (Customizable) | |
| Rated Frequency（fn） | 50Hz / 60Hz (±1% tolerance) | |
| Connection Group | Dyn11 (Default) / Yyn0 (Optional, per IEC 60076-1) | |
| Environmental & Operating Conditions | ||
| Ambient Temperature | -25℃~40℃ (-40℃ optional with anti-freeze additive) | |
| Altitude | ≤1000m (5% derating at 1500m, 10% at 3000m) | |
| Humidity | ≤90% @25℃ (no condensation); ≤50% @40℃ | |
| Seismic Resistance | GB 50260-2013, 7-degree intensity (0.15g acceleration) | |
| Protection Class | IP20 (Indoor) / IP23 (Outdoor, dust/rain protection) | |
| Losses & Impedance (Efficiency Core) | ||
| Parameter | S13-100/10 Example | Test Conditions |
| No-Load Loss (Po) | ≤170W | Rated voltage, rated frequency |
| Load Loss (Pk) | ≤1050W | Rated current, 75℃ reference temp |
| Short-Circuit Impedance (Uk%) | 4%~6% | ±10% tolerance at 75℃ |
| No-Load Current (Io%) | ≤1.2% (≤0.8% for large capacity) | Rated voltage |
| Efficiency Compliance: GB 20052-2024 Class 2 (S13) / Class 1 (S15, 15-20% lower losses than S13) — IEC 60076-11 IE2/IE3 equivalent for EU markets | ||
| Example S13-250/10 Key Specs | ||
| Item | Value | |
| Rated Capacity | 250kVA | |
| HV/LV Voltage/Current | 10kV/14.43A；0.4kV/360.8A | |
| No-Load/Load Loss | ≤320W / ≤2250W | |
| Short-Circuit Impedance | 4.5% | |

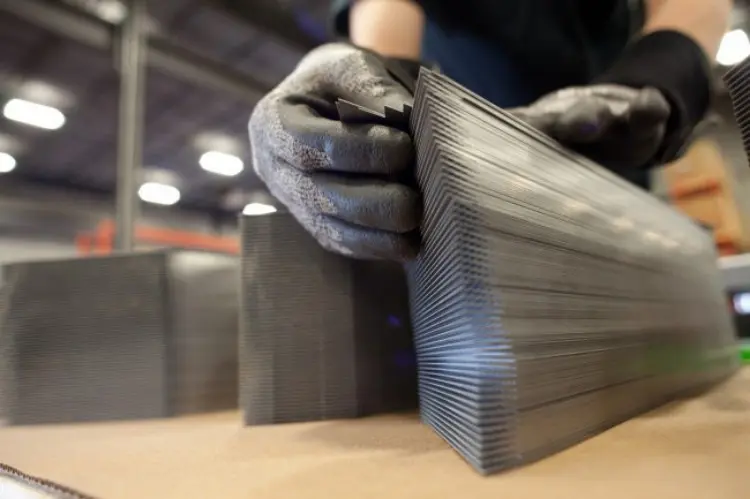

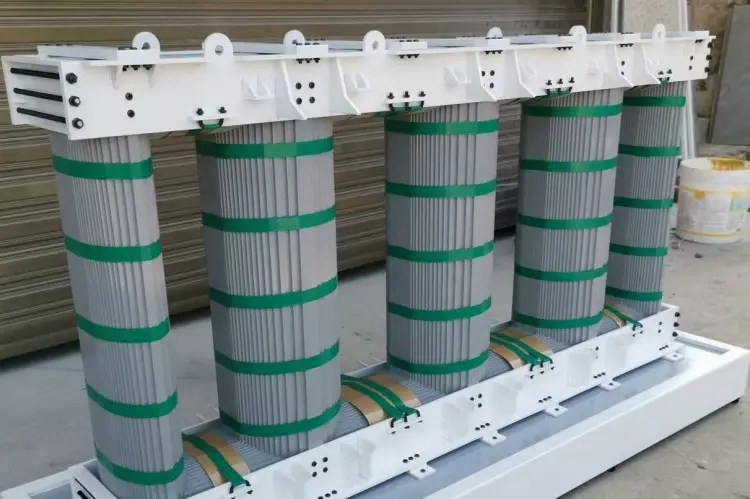

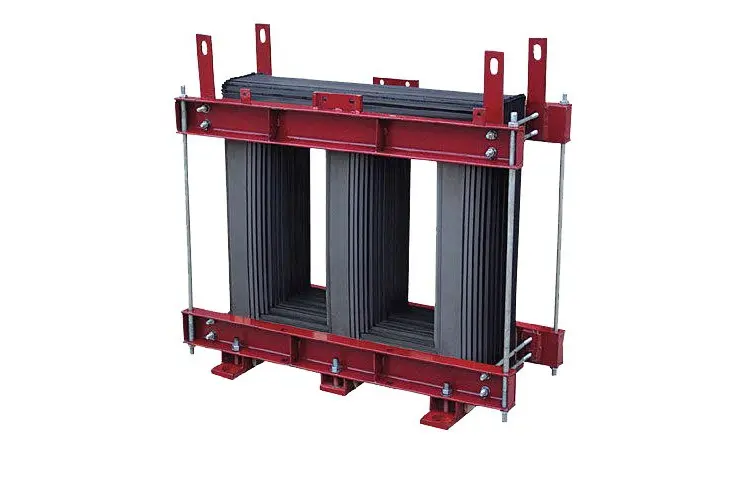

| Core Material | 30Q130 Silicon Steel | |
| Cooling Method | ONAN | |
| Protection Class | IP23 | |
|
Customization available for special voltages, high-altitude, or explosion-proof requirements. All parameters verified by third-party labs. |
||
Powers heavy machinery (e.g., manufacturing assembly lines, metal processing equipment), industrial control systems, and factory power distribution networks—handles fluctuating loads stably to ensure uninterrupted production.
Integrates with solar photovoltaic (PV) farms and wind power plants, converting unstable renewable energy into grid-compatible electricity for efficient power transmission to the public grid.
Supplies power to commercial buildings (shopping malls, office towers) and residential communities, supporting HVAC systems, lighting, and household/appliance electrical needs with low noise and high efficiency.
Used in medium/high-voltage power grids (e.g., regional substations), stepping up/down voltages to match long-distance transmission and end-user demand, ensuring safe and efficient power supply.
